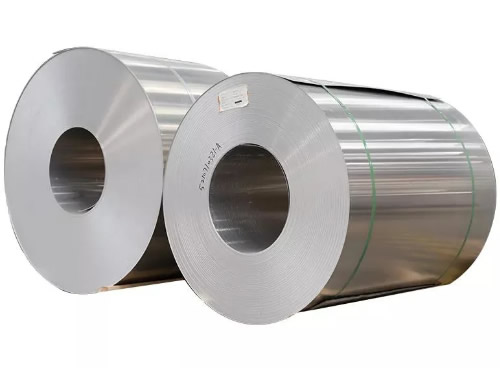

| Product Name | Incoloy 825 Alloy Coil (UNS N08825/NS142) | |
| Technology | Hot rolled , Cold rolled | |
| Grade | Inconel 600, Inconel 601, Inconel 625, Inconel 617, Inconel 690, Inconel 718, Inconel X-750 | |
Incoloy A-286, Incoloy 800, Incoloy 800H, Incoloy 800HT Incoloy 825, Incoloy 901, Incoloy 925, Incoloy 926 | ||
| Monel 400, Monel K-500 | ||
| Hastelloy C22, Hastelloy C-276, Hastelloy B-2, Hastelloy B-3, Hastelloy X | ||
| Specifications | ASTM, ASME, UNS, JIS, EN, AFNOR | |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Processing Service | Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining Deformation processing : Bending / Cutting / Rolling / Stamping | |
| Delivery time | 10-30 days subject to the clients' requirement and quantity | |
| Package | clients' requirement and Standard export sea-worthy packing | |
| MOQ | 1 ton | |
Available Size Range
| Dimension | Range |
| thickness | 0.1-12mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm etc. or customer's request |
| Length | 1000mm~6000mm, or as customer's request |
Chemical Analysis
| Alloy | % | Ni | Cr | C | Mn | Fe | Si | Cu | Mo | Al | Ti | P | S |
| Incoloy 825 | Min. | 38 | 19.5 | - | - | Balance | - | 1.5 | 2.5 | - | - | - | - |
| Max. | 46 | 23.5 | 0.05 | 1 | Balance | 0.5 | 3 | 3.5 | 0.2 | 1.2 | 0.03 | 0.03 |
Physical Properties
| Density | 8.0G/CM3 |
| Melting Range | 1350-1400°C |
Mechanical Properties
| Alloy | Tensile Strength | Yield Strength | Elongation | Brinell Hardness |
| RM N/MM2 | RP0.2 N/MM2 | A5% | HB | |
| Solution Treatment | 550 | 220 | 30 | ≤200 |
Applications
- Chemical Processing
- Pollution-control
- Oil and gas well piping
- Nuclear fuel reprocessing
- Components in Pickling equipment like heating coils, tanks, baskets and chains
- Acid production
